MetVIEW®

MetVIEW® is Metrix NDT's highly customisable X-ray software package which can be supplied integrated into Metrix X-ray inspection systems, or as an API to be used in conjunction with customer's existing hardware.

MetVIEW® has an intuitive touch friendly PC based software interface and a user-friendly dashboard.

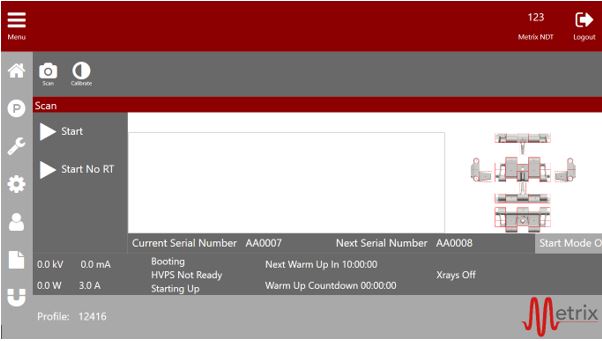

Start Screen

X-Ray Generator Control

MetVIEW® supports all X-ray generators with a digital interface allowing operators to:

• •Set the X-ray energy and flux
• •Turn X-rays ON and OFF
• •Automated generator warm up
• •Monitor the X-ray status

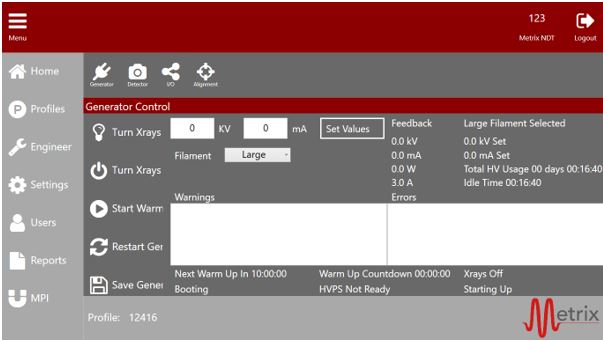

Generator control

Detector Support

MetVIEW® supports both Linescan and digital flat panel (DR) X-ray detectors.

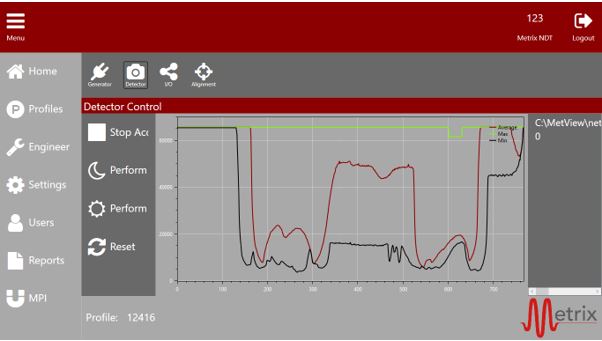

Detector Control

Input/Output Control

Input/Output control is customisable for specific applications.

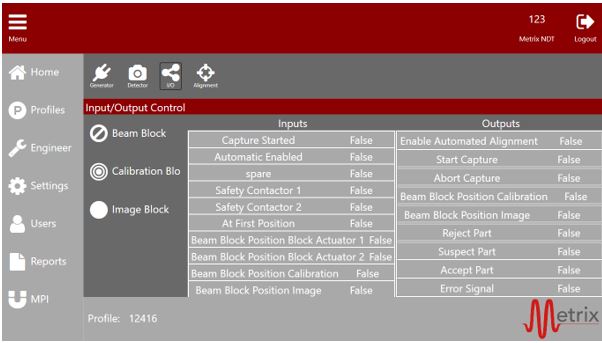

Input /Output Control

System and Motion Stage Control

System and Motion stage controls can be customised to suit the application requirements of inline, online or stand alone systems.

System and Motion Stage Control

Sophisticated Image Acquisition and Processing Functions

• •Image acquisition suite tailored to the specific application to optimise image quality
• •Image processing application suite tailored to process and inspect digital X-ray images
• •Image pre-processing for optimised pictorial data
• •Image feature extraction for manual and automated data analysis
• •Image classification for automated feature data recognition
• •CT data acquisition and rendering

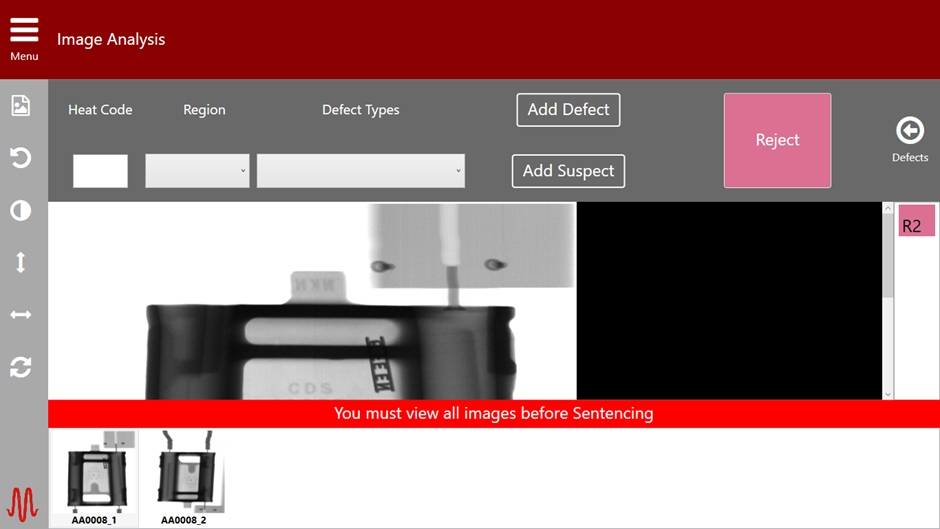

Image Acquisition and Image Processing

Database Support

• •Integrated database to log all inspections and sentencing details and results
• •Data tagged to product, user and date for full traceability
• •Extract data for data mining or pattern recognition to help improve production
• •Reporting

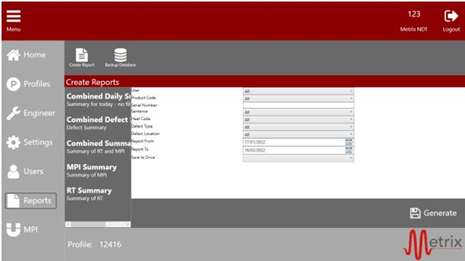

Database support, Traceability and Reporting
